Support System
Steel Support
European-standard adjustable steel props and shoring towers with RoHS certification, engineered for reliable vertical load transfer.
Overview
European-standard adjustable steel props for slab shoring and vertical load transfer, supplied with RoHS documentation. Available as individual props or as assembled shoring towers with stamped design calculations.
Key Benefits
Why This System
◆
Fine Adjustment
Rolled thread with a drop-head nut for precise levelling.
◆
Self-Cleaning Thread
Concrete debris clears rather than jamming the nut.
◆
Tower Assemblies
Supplied as engineered towers with stamped calculations.
◆
RoHS Compliant
Full documentation supplied with each shipment.
Specification
Technical Data
| Type | European adjustable prop |
|---|---|
| Tube Material | Q235 / Q345 steel |
| Adjustment Range | 1.8–3.2 m / 2.0–3.6 m / 2.6–4.8 m |
| Load Capacity | 20–35 kN depending on extension |
| Surface | Painted or hot-dip galvanised |
| Thread | Rolled, self-cleaning |
| Certification | RoHS reported |

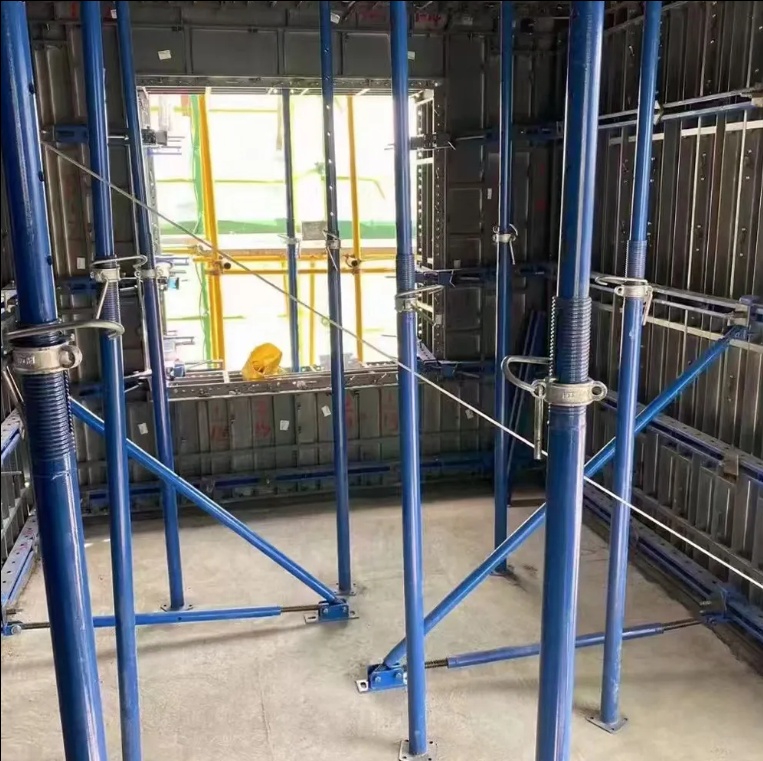

Gallery
Product Images
Need a Quote for Steel Support?
Tell us the quantity, the structure and your timeline. We will come back within one business day with pricing and lead time.
