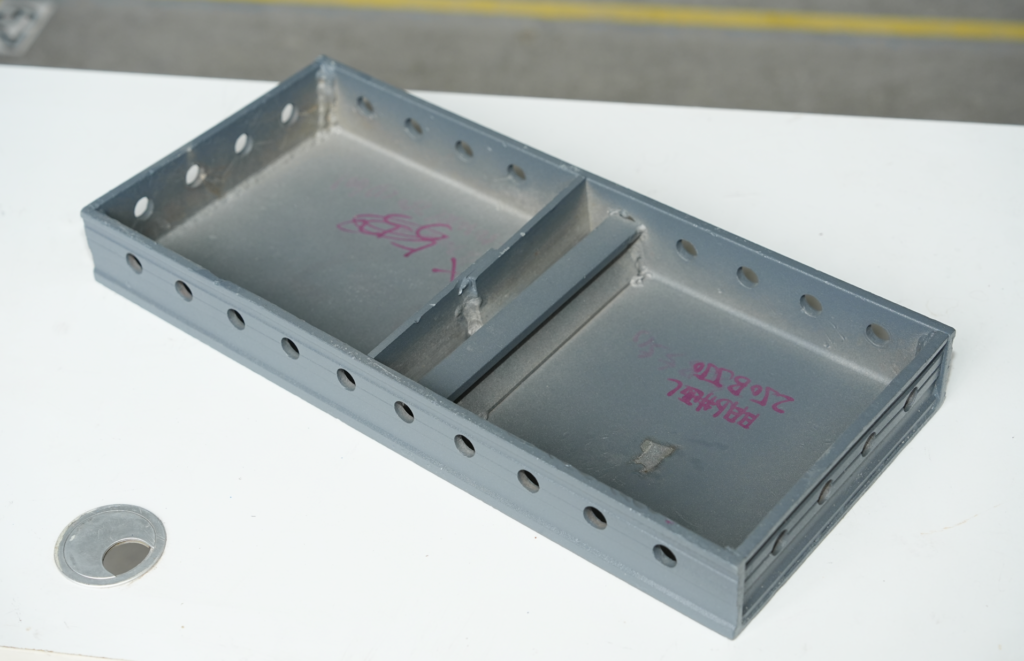

Top Plate & Beam Bottom Plate (Series B Floor Load-bearing Standard Formwork)

Specifications: 400B1000, 300B1100, 200B1100, 150B1100, 100B1100
Product Description
Series B is a dual-purpose aluminium formwork for floor slabs and beam bottoms within the aluminium formwork system. In the part numbering rule, the preceding figure stands for panel width (400/300/200/150/100 mm), and the trailing figure refers to panel length (1000/1100 mm). Standard panels of assorted widths can be freely assembled to cast in-situ floors of any bay size for residential and office buildings. Meanwhile, they work as forming panels beneath primary and secondary beams and combine with beam side formworks to form an integral casting system for beams.
Construction Advantages
High flatness and dimensional accuracy of panel surface delivers smooth soffit after concrete pouring, eliminating subsequent ceiling plastering and enabling plaster-free construction.
Modular width specification minimizes irregular on-site cutting and material wastage.
Integrally cast stiffening ribs endow outstanding flexural capacity; panels resist bulging and deformation under concrete load to guarantee consistent slab thickness.
Weight Reference
400B1000: 9.40kg，100B1100: 3.70kg
