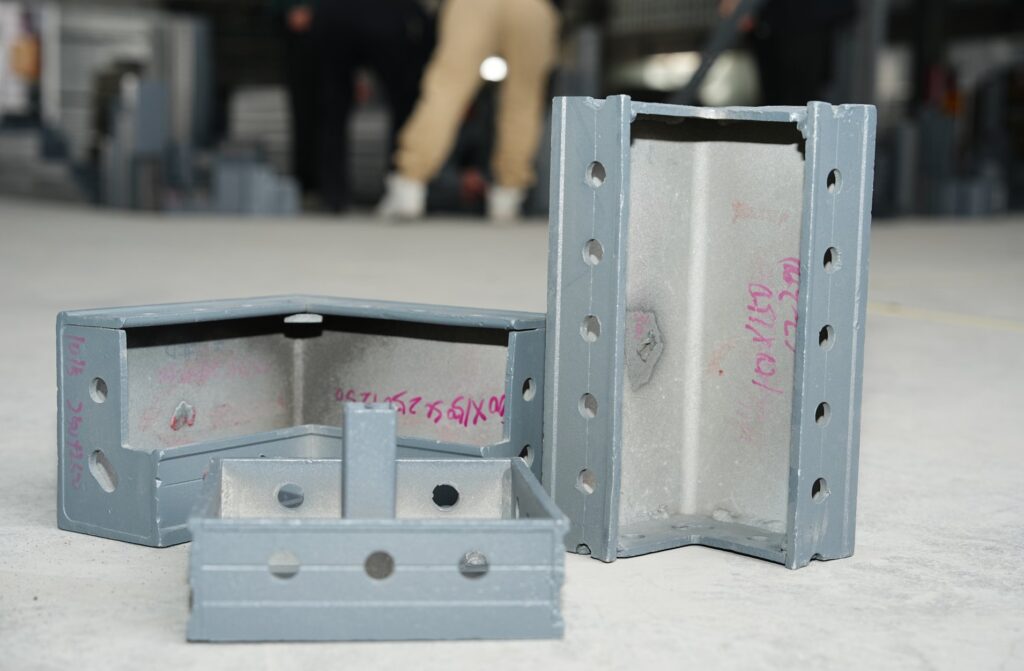

Internal Corner (SE Inner Corner Formwork / C-channel, 100×100 / 150×150 Series)

Model & Specification:
100×100 SE100, 100×150 SE100, 150×150 SE100, 150×150 SE150
Product Description
Commonly known as C-channel in the industry, SE inner corner formwork is specially applied for 90° internal corners of interior walls, beam-column inner joints and recessed positions of shear walls. The first two figures indicate the cross-section width of the inner corner groove, while the last figure stands for the profile height. It serves as the key transitional fitting connecting two perpendicular wall panels, widely used at intersecting inner corners of partition walls, junctions between shear walls and floor slabs, as well as column recess corners.
Construction Advantages
One-piece U-shaped extrusion delivers neat and smooth cast inner corners, effectively preventing edge chipping frequently seen with conventional timber formwork.
Pre-drilled standard pin holes enable seamless connection with wall and top plates for tight joints and effective slurry leakage prevention.
Two available groove sizes (100 & 150) fit shear walls of various thicknesses with high versatility, complying with mainstream overseas project standards.
Weight Reference
100×100 SE100: 0.70kg｜150×150 SE150: 1.15kg
