6061-T6 Aluminum Formwork System with Complete Wall & Column Formwork Accessories

I. Basic Parameters

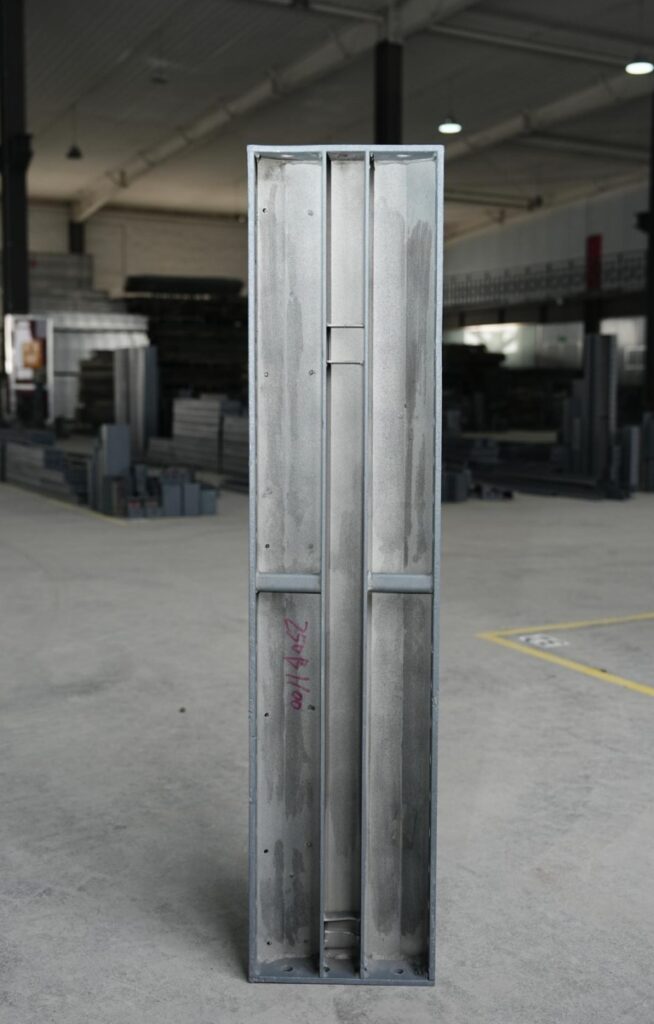

Product Name: Standard Wall & Column Aluminum Formwork (Main Wall Panel)
Raw Material: 6061-T6 Aluminum Alloy
Standard Size (W × L / mm): 400×2600, 300×2650, 200×2650, 100×2650
Unit Weight:
400×2600 = 22.65kg, 300×2650 = 18.50kg,
200×2650 = 13.15kg, 100×2650 = 8.45kg
II. Product Application
Shear Wall Casting
As the core component of the full aluminum formwork system, it shapes cast-in-place interior and exterior shear walls and accounts for the largest proportion of wall formwork consumption.
Rectangular Frame Column Forming
Multiple standard panels are assembled enclosing to fix formwork for square and rectangular frame columns during concrete pouring.
Modular Infill Matching
Wide panels of 400mm and 300mm serve as main formwork for large wall areas; narrow panels of 200mm and 100mm are used for sides of door & window openings, irregular partial gap filling and edge sealing of small-size structural columns. Various sizes can be freely combined to fit any building modular dimension.
III. Product Advantages
Integrated Stiffener Structure
Integrally extruded rear stiffeners deliver outstanding resistance against lateral concrete pressure to avoid panel bulging during pouring. The finished wall surface is flat and smooth to realize plaster-free construction and cancel subsequent wall plastering work.
System-wide Universal Pin Holes
Uniform standard pin holes around panel edges enable fast assembly with outer corner formwork, inner C-channel, beam-column angle aluminum, K-plate and other accessories by shared pins for easy on-site mounting and dismantling.
Durable Material for High Reuse Cycles
6061-T6 alloy features excellent impact resistance and cement corrosion resistance, supporting over 150 turnover cycles. It achieves superior cost performance compared with conventional timber formwork for long-term repeated use on projects.
Standard Modular Design Reduces Material Waste
Fixed modular specifications minimize on-site cutting and modification, greatly cutting raw material wastage.
